Product Overview

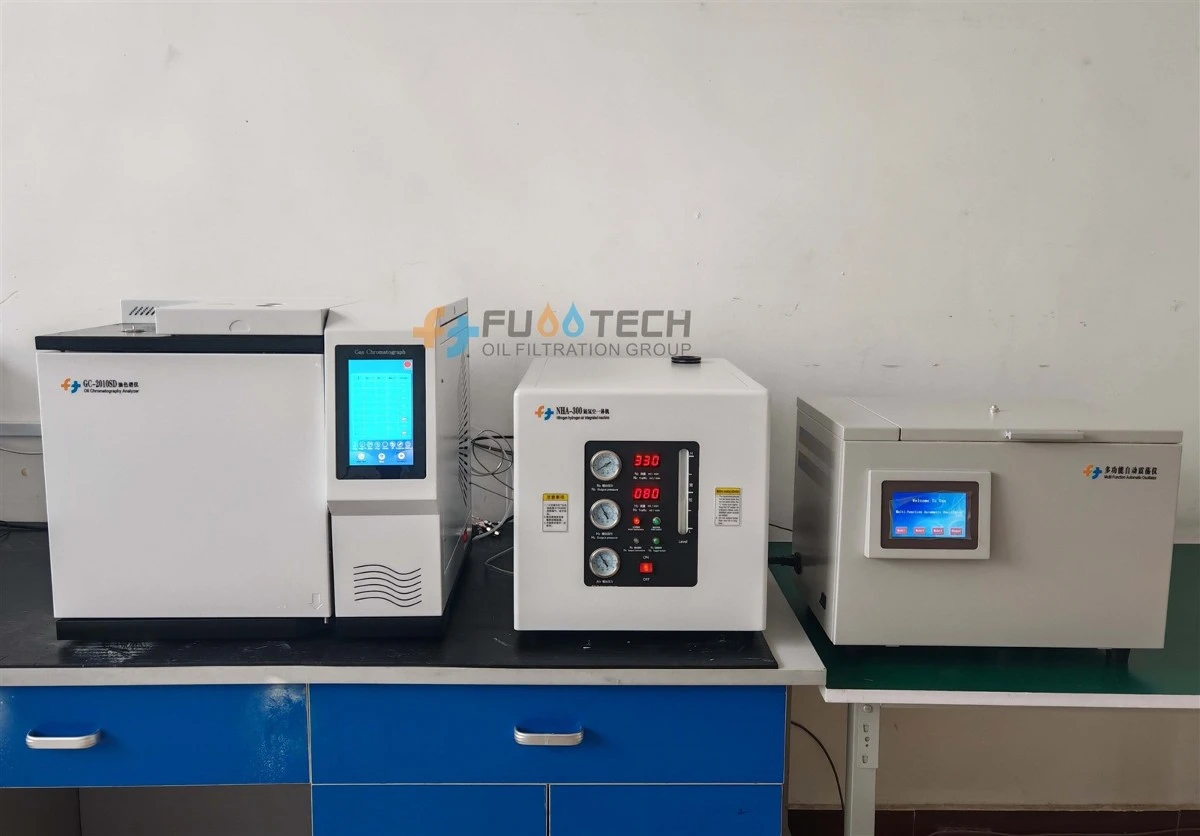

GC-2010SD yog tus kws tshaj lij roj chromatography DGA tester tsim los ntawm FUOOTECH, tshwj xeeb uas tsim los rau kev kuaj xyuas cov roj ua txhaum hauv cov roj hluav taws xob hluav taws xob. Nws muaj ob configurable versions:
7-gas qauv qauv:Tshawb xyuas 7 cov roj av txhaum cai: H₂, CH₄, C₂H₆, C₂H₄, C₂H₂, CO, CO₂ (cov chaw nres tsheb fais fab kev sim niaj hnub)
9-gas upgraded qauv:Ntxiv O₂, N₂ nyob rau hauv lub hauv paus ntawm 7 gases, tag nrho ua raws li IEC & lub teb chaws tus qauv rau ultra- high voltage transformer puv - mob mob
Core Hardware System
Txais ob npaug -Kem parallel shunt sib cais qauv, nruab nrog ua tiav ntau- kuaj xyuas kev teeb tsa rau ib qho - sij hawm txhaj tshuaj tag nrho cov roj:
1. TCD (Thermal Conductivity Detector)
Tshawb nrhiav cov pa roj ntsha tsis muaj zog: H₂, O₂, N₂, qhov ntsuas qhov tsawg kawg nkaus H₂＜2ppm
2. Dual FID (Nplaim Ionization Detector) + Methane hloov dua siab tshiab rauv
Kev txheeb xyuas cov pa roj carbon monoxide (CH₄, C₂H₂, C₂H₄, C₂H₆), CO & CO₂; tshem tawm hla- cuam tshuam ntawm siab - concentration carbon oxides thiab kab alkynes
3. Ntau-channel ywj siab tswj qhov ntsuas kub
8 qhov chaw tswj qhov kub thiab txias (kem qhov cub, dual FID chav, hloov lub cub tawg, qauv inlet, thiab lwm yam), temp range RT+5℃~ 450 degree, tswj precision ± 0.1 degree
4. Tsis siv neeg cov roj rho tawm
Matches tus qauv roj sampling syringes, lub tshuab nqus tsev headspace extraction kom tag nrho tso cov pa yaj los ntawm cov qauv roj
Ntsiab Technical Specifications
1. Kev soj ntsuam ceev: Ib qho qauv kuaj tag nrho Tsawg dua lossis sib npaug li 15 feeb; ntsuas sov- lub sijhawm ruaj khov ＜30 min
2. Kev kuaj pom rhiab heev:
- Alkyne gas C₂H₂: ＜0.1 ppm
- CO / CO₂: ＜1 ppm
- Hydrogen H₂: ＜2 ppm
3. Tswj & tso saib: Lus Askiv kov LCD npo, tiag tiag- lub sijhawm saib xyuas txhua qhov chaw kub; thim rov qab cov chaw taws teeb tswj los ntawm lub zog siab DGA workstation
4. Kev tiv thaiv kev nyab xeeb: Tsis siv neeg txiav -tawm thaum cov roj xa tuaj; siab - kub dhau kev tiv thaiv; auto-txuag tsis tau tom qab fais fab tuag; FID tsis siv neeg ignition muaj nuj nqi
5. Rated zog: 2500 W
6. Qhov Loj: 705 × 580 × 530 mm; skid-mounted integrated txee rau qhov chaw kuaj
Qhov zoo tshaj plaws
1. Ib qho kev txhaj tshuaj tag nrho sib cais: Muab ob npaug rau-Kem shunt thev naus laus zis tsis txhob rov ua cov qauv txhaj tshuaj, ua kom zoo dua qhov kev sim
2. Ultra- tsis tshua pom kev txwv: ntes cov kab acetylene (arc fault yam ntxwv roj) thaum ntxov ua tsis tiav
3. Ntiaj teb no export configuration: Tag nrho cov English lag luam interface, CE & ISO9001 ntawv pov thawj, txhawb 380V / 415V txawv teb chaws fais fab mov
4. Tus nqi tu qis: Ntev- lub neej chromatographic kem, hloov tau lim cov ntsiab lus, tsis siv neeg tus kheej- kuaj xyuas rau lub tswb txhaum
5. Ua kom tiav kev ruaj ntseg interlock: Tiv thaiv hluav taws thiab tiv thaiv kev puas tsuaj los ntawm roj poob lossis tshaj -kub
Main Application Fields
1. Fais fab nroj tsuag, siab -voltage substations: Routine DGA tu cov roj-immersed transformers, reactors, CT/PT
2. Transformer manufacturing factories: Factory FAT dissolved gas test ua ntej xa
3. Thib peb-cov chaw soj ntsuam hluav taws xob tog: Kev kuaj xyuas cov roj foob tsis raug
4. Metallurgy, petrochemical, railway fais fab mov: Cov khoom siv hluav taws xob loj muaj kev ruaj ntseg xyuas
Xav paub ntau ntxiv txog cov roj tester, txais tos hu rau peb!
